Foxeer 5.8G 40CH TM25 SWITCHER 25/200/600mW adjustable Power VTX with Race Band

Part Number 3470
Foxeer 5.8G 40CH TM25 SWITCHER 25/200/600mW adjustable Power VTX with Race Band
Price
Your Price:
$33.00
Availability:
In Stock
Quantity
Add to Gift Registry
Description

Description:

New released Foxeer TM25 SWITCHER with more accurate output power, 25/200/600mW adjustable power, supports 40 channel including race band, VTx is 9.5g without antenna, good capacity of anti-interference, can change frequency/channel/power only by the button, very easy operation.

1. Long press the key for 2 seconds to enter channel setting mode, short press the key to switch 1 to 8
2. Long press the key for 2 seconds to enter channel group setting mode, short press the key to switch channel group from 1to 5.

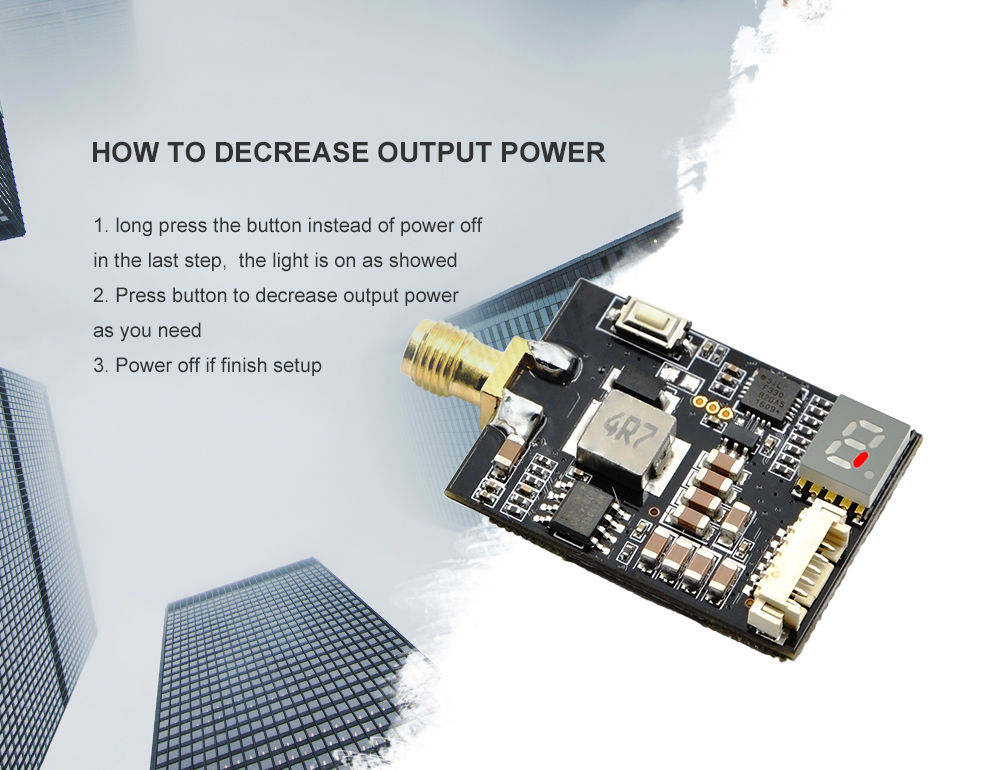

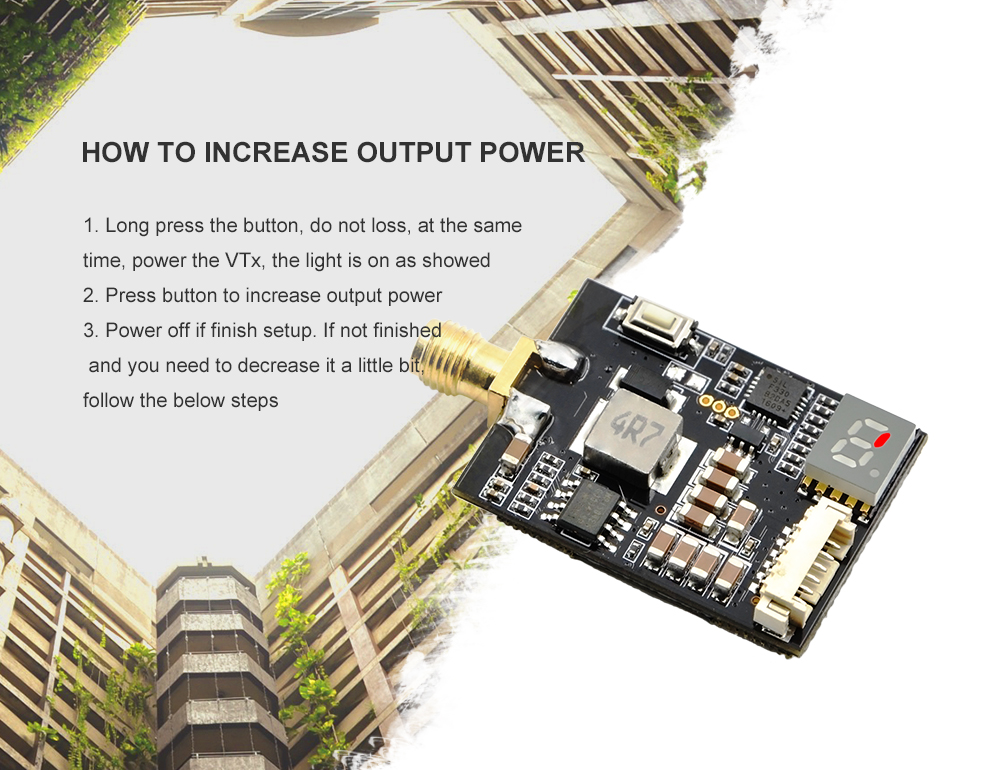

3. Long press the key for 2 seconds to enter power setting mode, short press key to switch 1 to 3, "1" stands for 25mW, "2" stands for 200mW, "3" stands for 600mW
4. Long press the key for 2 seconds to quit setting mode, LED display window will show present group and channel alternately, power do not show.

Specification:

Transmitter Frequency(MHz)Wideband FM Modulate
Video FormatNTSC/PAL
Output Impedance50 Ohm
Output Power25mW200mW600mW
Input Voltage7~24V
Output VoltageDC5V
Operating Temperature-10~ 85°C
Video Band Width0~8.0 MHz
Audio carrier Frequency6.5 MHz
Video Input Level0.8~1.2 Vp-p
Audio Input Level0.5~2.0 Vp-p
Audio Input Impedance10K Ohm
Weight9.5g
Antenna ConnectorSMA/RPSMA


FRCHCH1CH2CH3CH4CH5CH6CH7CH8
A(1.)58655845582558055785576557455725
B(2.)57335752577157905809582858475866
E(3.)57055685566556455885590559255945
F(4.)57405760578058005820584058605880
R(5.)56585695573257695806584358805917
